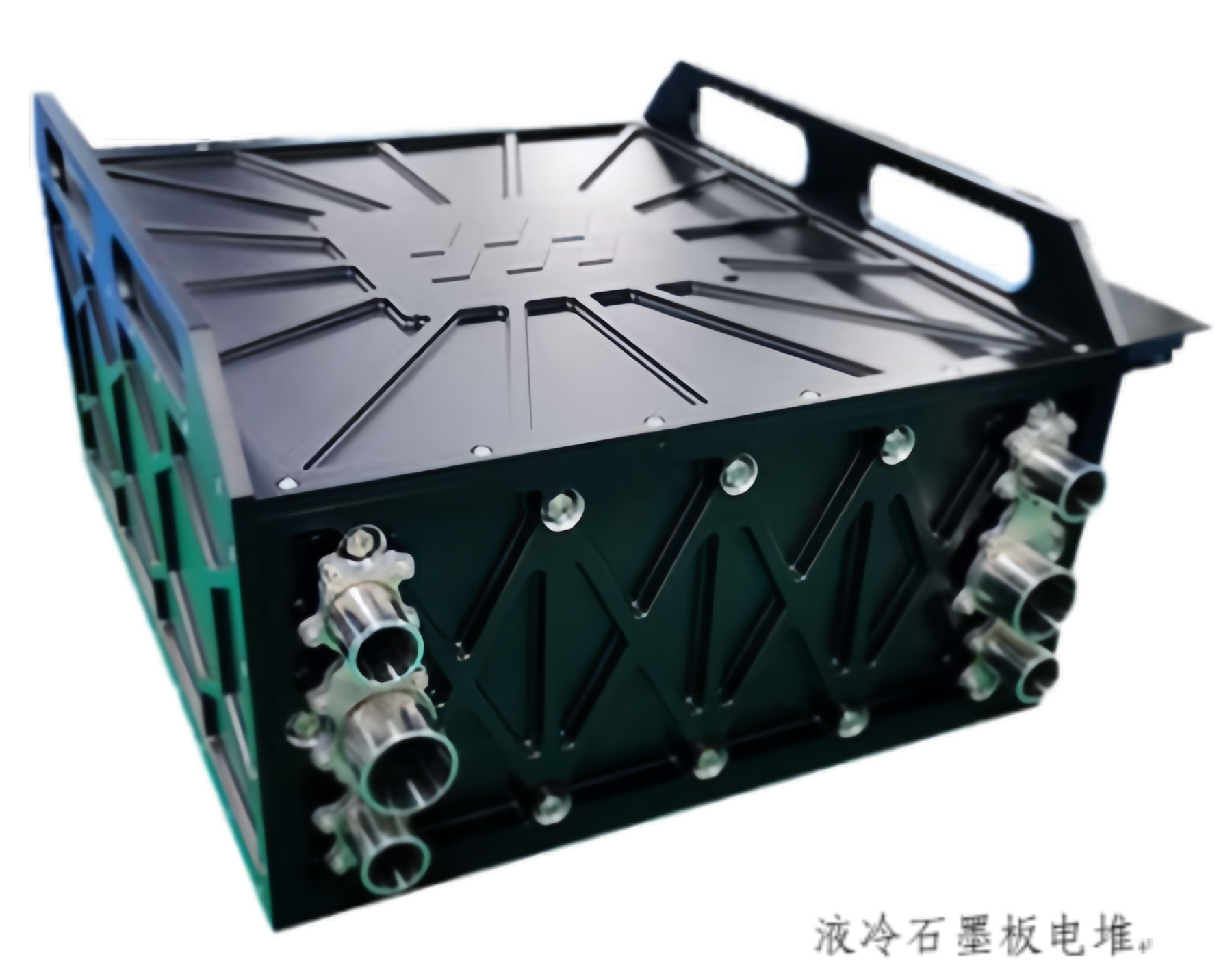

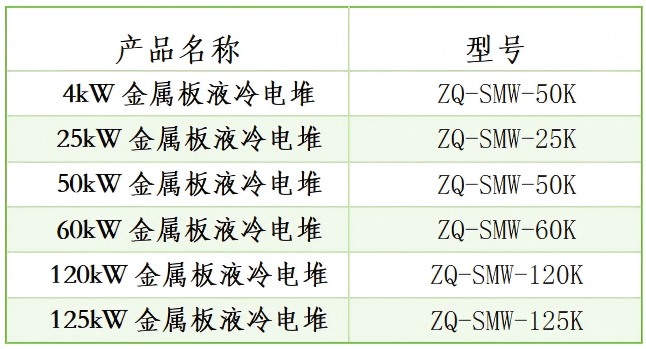

As an important performance component of the fuel cell system, the high-performance 60kW MBP fuel cell stack developed by SINOHEC has a volumetric power density of 4.0kW/L. The stack is suitable for passenger cars, commercial vehicles, logistics vehicles, etc.
50kW MBP Fuel Cell Stack
60kW MBP Fuel Cell Stack

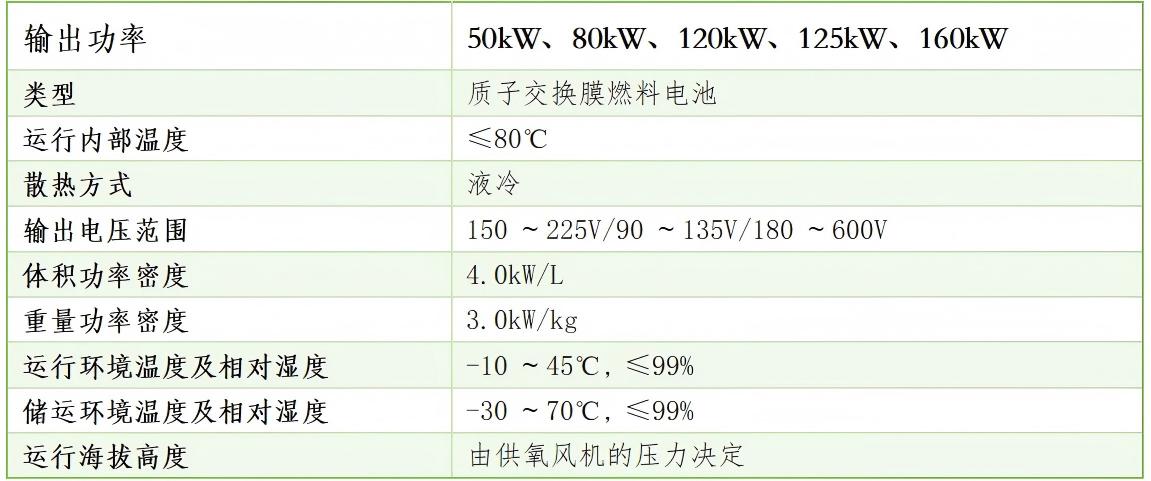

| Spec. | Output Power | 30~120KW |
|---|---|---|
| Type | PEMFC | |
| Internal Operation Temperature | <=90℃ | |
| Cooling Mode | Liquid Cooling | |
| Output Voltage Range | 150~225V/90~135V | |
| Power Density | Volume Power Density | 4.0KW/L |
| Weight Power Density | 3.0KW/Kg | |
| Required Environment | Operating Amb. Temp. and Rela. Humi. | -10~45℃,<=99% |
| Storage Amb. Temp. and Rela. Humi. | -30~70℃,<=99% | |
| Operation Altitude | Depending on the air blower/compressor. |

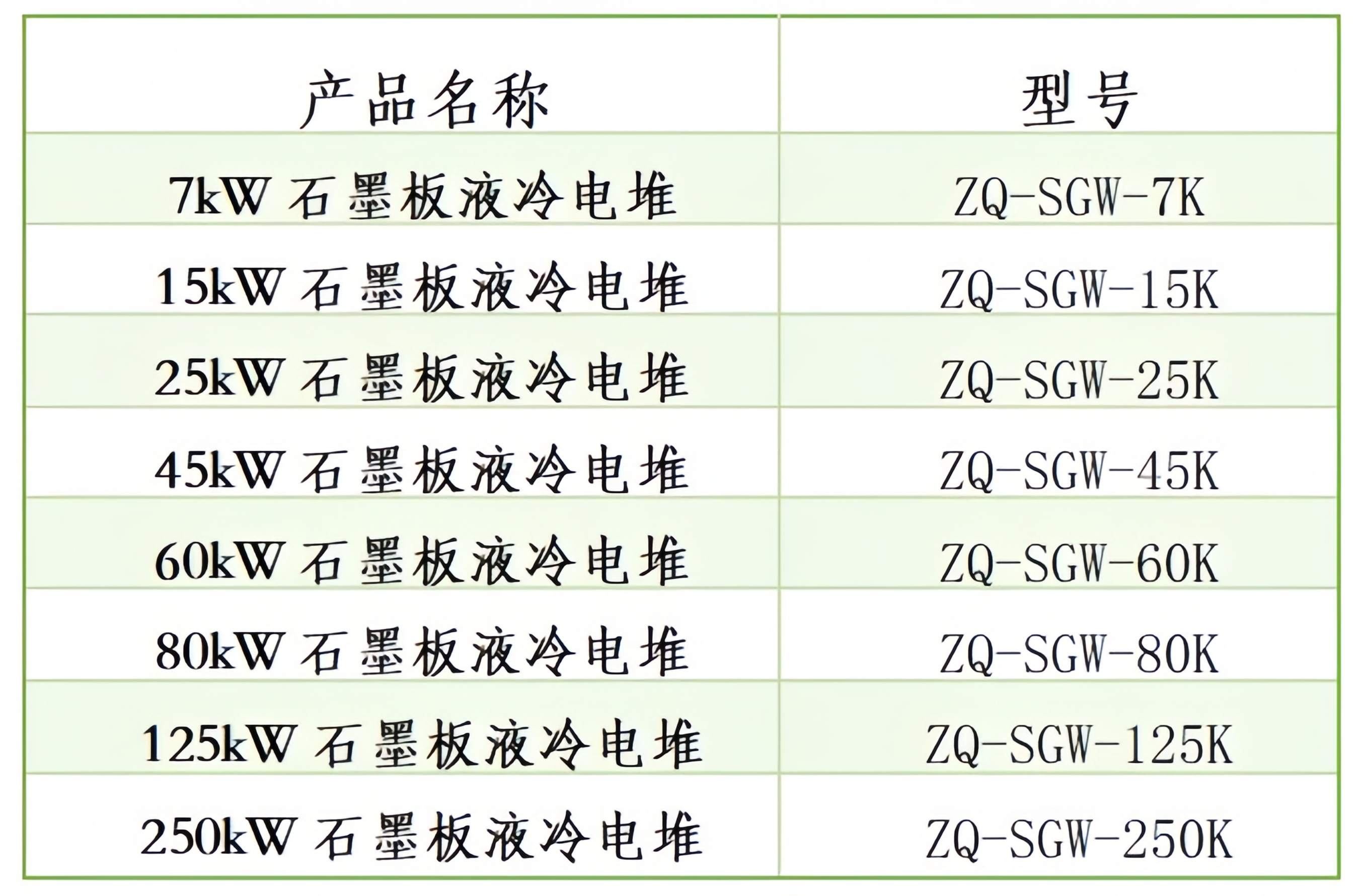

The 25kW GBP fuel cell stack developed by SINOHEC has a volumetric power density of 2.3kW/L. The stack is suitable for buses, logistics vehicles, etc.
25kW GBP Fuel Cell Stack

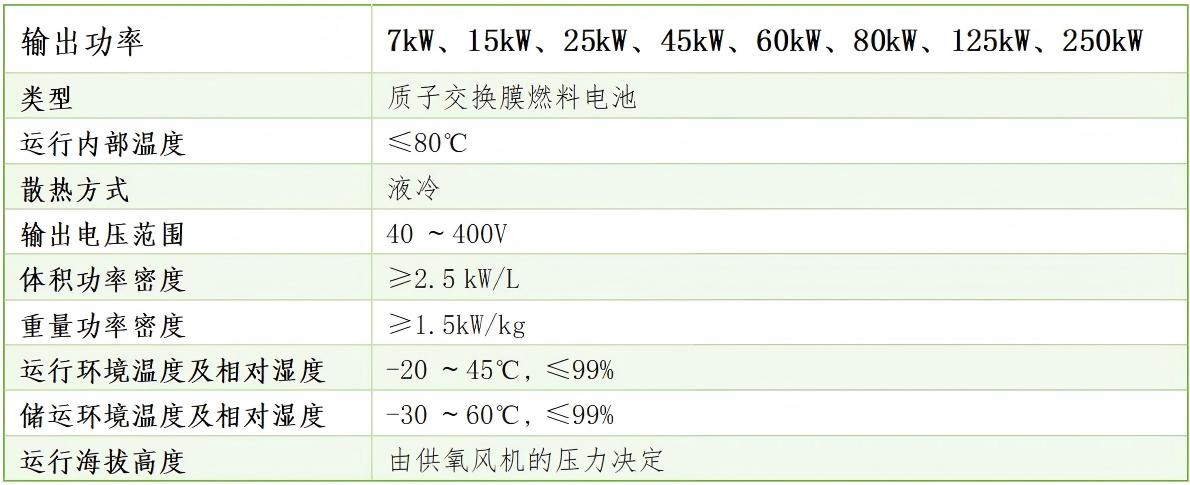

| Spec. | Output Power | >=25KW |
|---|---|---|
| Type | PEMFC | |
| Internal Operation Temperature | <=90℃ | |
| Cooling Mode | Liquid Cooling | |
| Output Voltage Range | 130~190V | |
|
Power Density |
Volume Power Density | 2.0KW/L |
| Weight Power Density | 31.5KW/Kg | |
| Required Environment | Operating Amb. Temp. and Rela. Humi. | -20~45℃,<=99% |
| Storage Amb. Temp. and Rela. Humi. | -30~60℃,<=99% | |
| Operation Altitude | Depending on the air blower/compressor. |

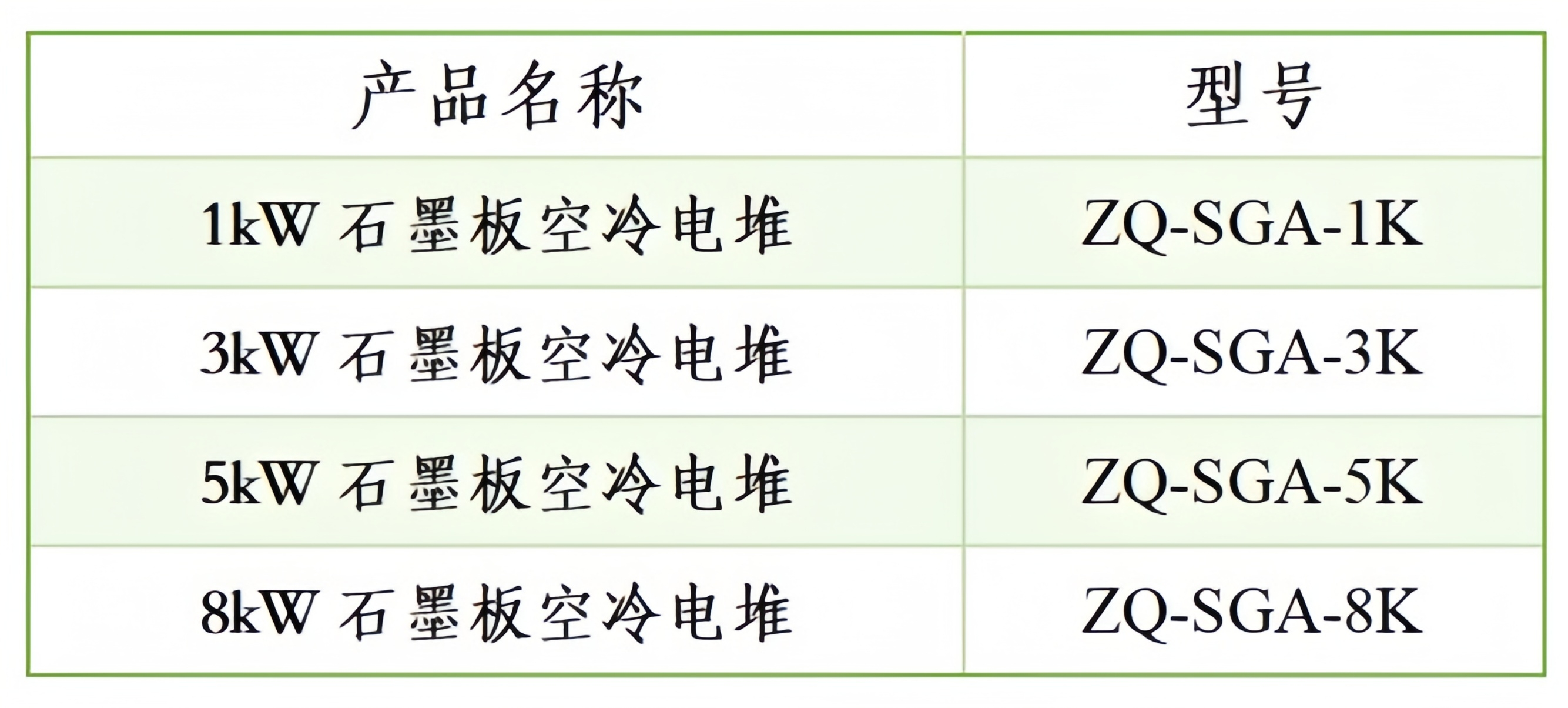

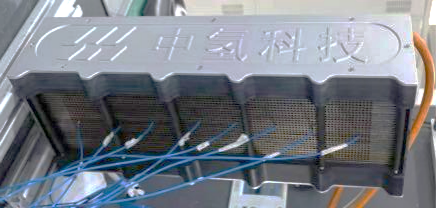

—The 5kW air-cooled fuel cell stack is suitable for motorcycles, tourist vehicles, industrial forklifts, backup power supplies, mini low-speed vehicles, etc.
—The 1.2kW air-cooled fuel cell stack is suitable for small fixed-wing UAVs, backup power supplies, mini low-speed vehicles, etc.
1.2kW Air-cooled Fuel Cell Stack
5kW Air-cooled Fuel Cell Stack

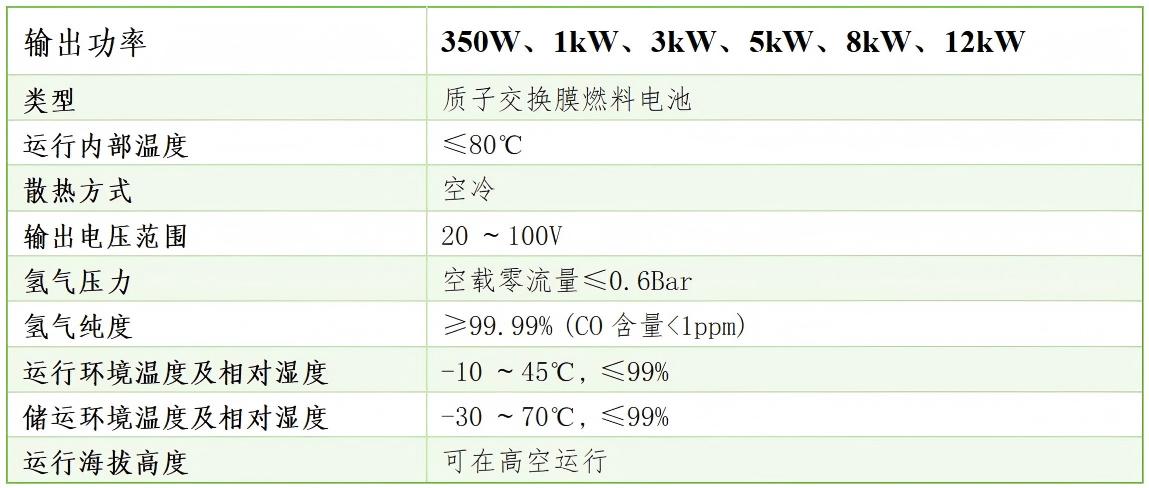

| Spec. | Output Power | >=1200KW@28.8V |
|---|---|---|
| Weight | <=200g | |
| Dimension | 240*180*34 | |
| Type | PEMFC | |
| Internal Operation Temperature | <=90℃ | |
| Cooling Mode | Fan Air Cooling | |
| Output Voltage Range | 28.8~43.2V | |
| Required H2 Source | Hydrogen Pressure and Flowrate |
<=0.6Bar@no load >=0.4Bar@14SL/min full load |
| Hydrogen Purity | >=99.99% (CO concentration<1ppm) | |
| Required Environment | Operating Amb. Temp. and Rela. Humi. | -10~45℃,<=99% |
| Storage Amb. Temp. and Rela. Humi. | -30~60℃,<=99% | |
| Operation Altitude | May reduced power on high altitude |
